Flood overlays explained: what they mean for what you can build

What a flood overlay actually does: three things

1. It changes the approval pathway. Being within a flood prone area can often mean your application is not viable for a streamlined approval pathway. Councils assess floor levels, structure, evacuation and drainage against their flood controls, which extends assessment timeframes. This varies by state, NSW may still be viable for the streamlined CDC pathway, while QLD typically requires greater assessment.

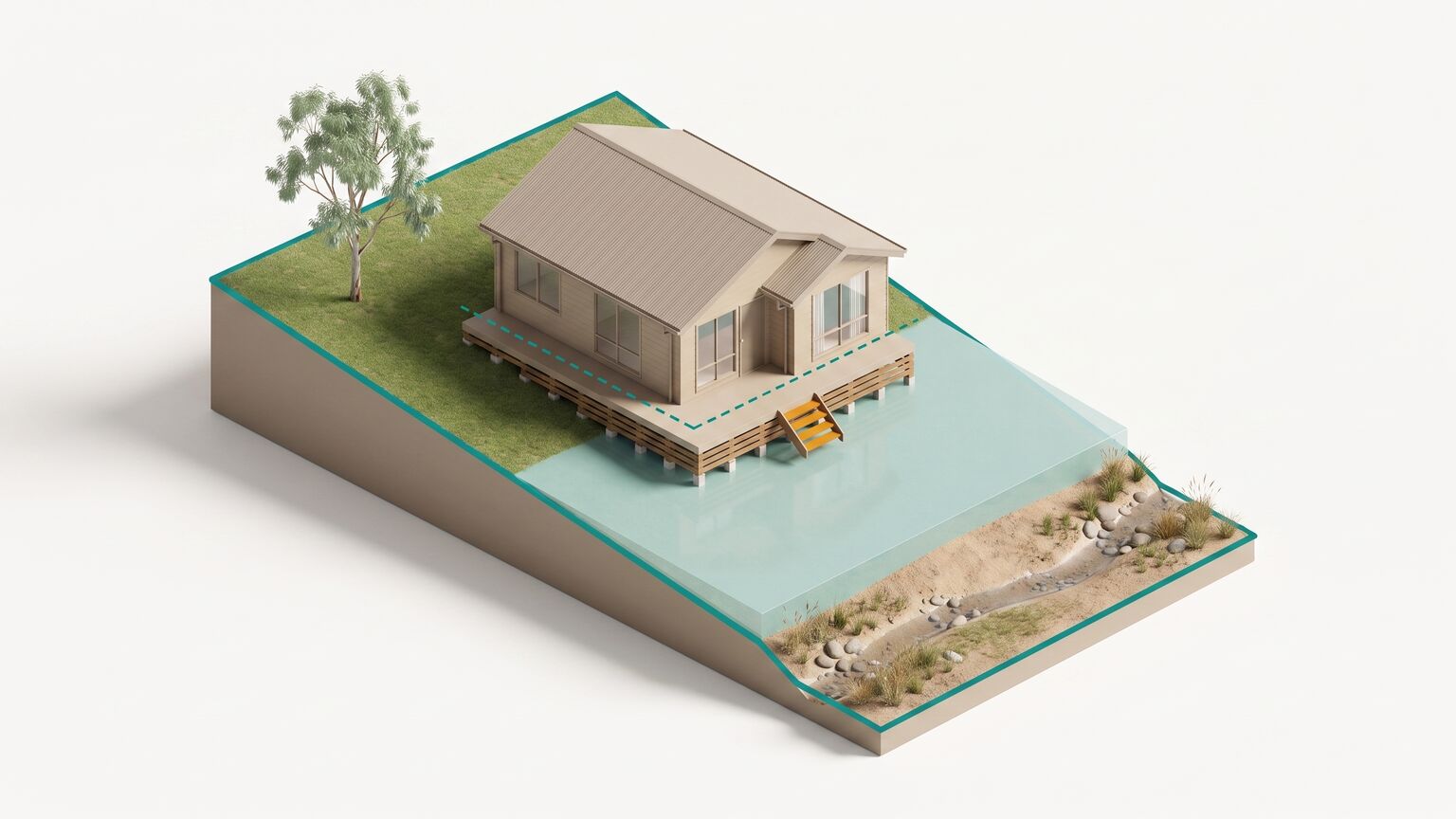

2. It sets design minimums. Almost everywhere in flood-prone Australia, a new home’s habitable floors must sit a set distance above the design flood level, the “freeboard.” That distance is usually set by the local council, not fixed by the state, which is why it varies: 300 mm is the common baseline (the deemed-to-satisfy or default figure in VIC’s Building Regulations, QLD’s Development Code MP 3.5, SA’s Design Code, TAS and the NT), but river and creek flooding often attracts 500 mm, and NSW council controls commonly use the 1% AEP level plus 0.5 m. WA sets no single figure, schemes range from a mandatory 300 mm to a discretionary half-metre, so the number depends on the local government. Below the freeboard line, materials and services are expected to tolerate getting wet.
3. It shapes what may be approved at all. Some sites within specific flood prone areas may not be viable for building, or at least highly restricted. The highest-hazard flood land, where water moves fast or sits deep, is often ruled out for new housing entirely, and no clever design gets around it. Even on buildable sites, there can be a limit: if floodwater at the house would be deeper than about 0.5 m, or 0.8 m across the way in and out, Victoria’s rules generally say no. The access figure is higher because getting out safely matters as much as the house staying dry.

Being in a flood overlay is also one of the conditions that can pull a project out of a fast-tracked approval: CDC vs DA sets out the two pathways, and the overlay entry defines the term itself.

State by state: the control’s name, the free checker, and the local catch

What it means for your build: an architect’s read

The floor-level rules we have mentioned are the minimum required. What they cost you on a real project depends less on the number, but how the house may need to be constructed, something that council won’t tell you, and where people can often be left questioning what they need to do.

Across the states, flood affected properties can have different requirements, and it can change how early you need to resolve the matter.

In Queensland and Victoria, a mapped site reliably means a mandatory floor level, and in Victoria it can also involve a referral authority, Melbourne Water or the local catchment authority, before council will issue your development approval. The requirement is certain, which at least means the cost is predictable: you know from day one you’re designing to a set level.

In NSW, WA and the NT, the floor level rule is binding when it applies, but whether it applies can depend entirely on postcode, because it depends on the council having completed and adopted a flood study for your specific block. Two near-identical sites down the road from each other can carry completely different requirements. Here the first job isn’t design, it’s finding out whether the site has specific flood requirements.

In SA and the ACT, things can be a little more ambiguous. SA’s mapping is mid-overhaul and still largely informational, often requiring enquiry with the council to confirm if they have a flood level requirement for your site. The ACT has little floodplain to regulate in the first place.

Where the money actually goes

Three levers, roughly in order of how much they affect your budget:

1. The largest impact on your budget for a project on flood prone land is how the floor gets raised. A modest floor level requirement on flat, well-drained land might be resolved with fill and a typical slab-on-ground. Raise the required floor higher and you may need a different type of construction that generally costs more, for example a suspended slab constructed on raised walls. A real-life example: a site with a 500 mm freeboard requirement may tip a project into suspended slab territory, because the site conditions (slope, existing ground levels, uneven ground) can make filling and retaining unviable, adding tens of thousands to your construction costs.
2. Construction below the flood level. Materials and construction methods will have specific requirements to combat moisture exposure. Common examples are detailing below-flood-level spaces so that they may allow water to move freely and drain away, moving electrical elements (distribution boards, air-conditioning units) above flood level, and using materials that can withstand getting wet.
3. The paperwork required for assessment. This may consist of a flood report or an engineer’s certification, adding cost to the design and application process. This can add weeks to an otherwise straightforward approval.

All three land on top of your base build rate, which is the figure the cost to build a house guide sets out, and they are exactly the kind of constraint the feasibility method tests before any money goes into a model.

The four things owners get wrong

1. “It’s in a flood overlay, so it’s uninsurable.” Overlay mapping and insurer risk models are different datasets; the overlay is a planning trigger, not an insurance verdict, though it may affect your premium.
2. “The map is clear, so it doesn’t flood.” NSW removed flood maps from LEPs; Tasmania’s mapping only exists where studies have been done; SA has an entire overlay category for “we don’t have the evidence yet.” Absence of mapping is absence of data, not absence of water. It’s best to check before assuming.
3. “A flood study on the property means it’s risky.” Queensland’s own FloodCheck warns the opposite: a study’s existence says nothing about your block’s actual risk level.
4. “The rules are the same everywhere.” The floor-level principle is common in each state; the numbers, layers and pathways are what differ. The state sections above define this.
